NAV 1 #77

New issue

Closed

opened 2023-10-18 19:27:01 +00:00 by Sander · 4 comments

Sander commented

2023-10-18 19:27:01 +00:00

Owner

Copy link

ACT/STBY

Find datarefs
Create graphics
Works in X-KeyPad
Works on Stream Deck
Placed in Stream Deck profile layout

TEST

Find datarefs
Create graphics
Works in X-KeyPad
Works on Stream Deck
Placed in Stream Deck profile layout

Mode

Find datarefs
Create graphics
Works in X-KeyPad
Works on Stream Deck
Placed in Stream Deck profile layout

Upper display

Find datarefs
Create graphics
Works in X-KeyPad
Works on Stream Deck
Placed in Stream Deck profile layout

Lower display

Find datarefs
Create graphics
Works in X-KeyPad
Works on Stream Deck
Placed in Stream Deck profile layout

Digits and CLR

Find datarefs
Create graphics
Works in X-KeyPad
Works on Stream Deck
Placed in Stream Deck profile layout

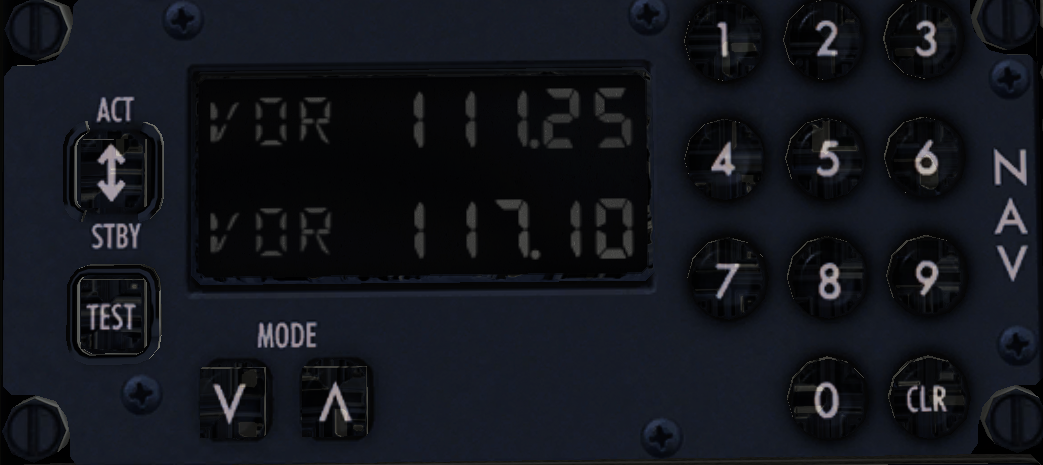

![SCR-202407150959-RjvWeHns](/attachments/0f9a9452-e41b-49f3-9282-386c68068360) # ACT/STBY - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # TEST - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Mode - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Upper display - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Lower display - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Digits and CLR - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout


225 KiB


614 KiB

Sander commented

2023-10-18 19:32:07 +00:00

Author

Owner

Copy link

#88 has a better image for the display.

Sander added this to the 0.0.1 milestone 2024-02-02 16:41:51 +00:00

Sander commented

2024-02-02 23:00:53 +00:00

Author

Owner

Copy link

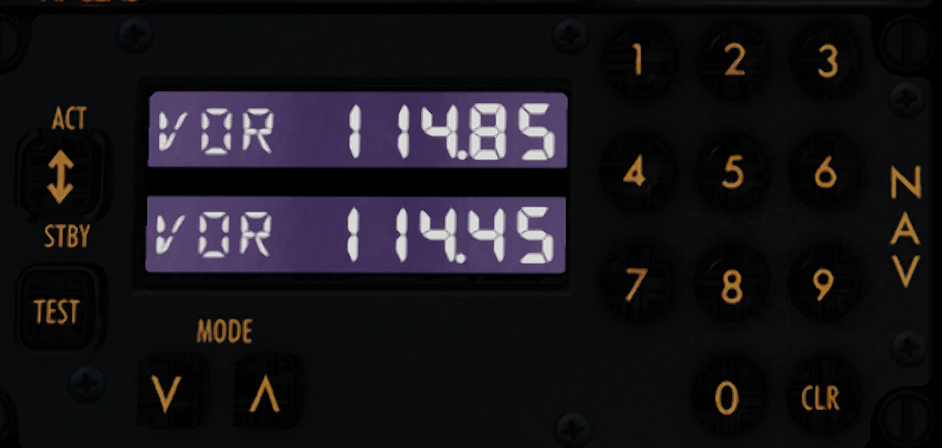

Did the NAV on the Zibo change and did I miss it? Cause I can't find the device on the screenshot anymore and I did find this one:

Did the NAV on the Zibo change and did I miss it? Cause I can't find the device on the screenshot anymore and I did find this one: ![afbeelding](/attachments/2be3e4a3-7c4b-4540-bc5e-9d2e93ac1c60)


461 KiB

Sander commented

2024-02-03 16:05:57 +00:00

Author

Owner

Copy link

ACT/STBY

C laminar/B738/push_button/mmr1_act_stby

TEST

C laminar/B738/push_button/mmr1_test

MODE Up

C laminar/B738/push_button/mmr1_mode_up

MODE Down

C laminar/B738/push_button/mmr1_mode_dn

Digits

C laminar/B738/push_button/mmr1_1 through laminar/B738/push_button/mmr1_0

CLR

C laminar/B738/push_button/mmr1_clr

Display

Mode: R laminar/B738/mmr/cpt/stby_mode (0=VOR, 1=ILS, 2=GLS)
Value: R laminar/B738/mmr/cpt/stby_value
Note: the value is an array that you need to read from right to left. So 114.45 is [5, 4, 4, 1, 1]. _ _ _ . _ _ is [0,0,0,0,1].
If the value of STBY is _ _ _ . _ _ and you want to switch that to active, you get ERR (R laminar/B738/mmr/cpt/err = 1).

For active use R laminar/B738/mmr/cpt/act_mode and R laminar/B738/mmr/cpt/act_value.

ACT/STBY - C `laminar/B738/push_button/mmr1_act_stby` TEST - C `laminar/B738/push_button/mmr1_test` MODE Up - C `laminar/B738/push_button/mmr1_mode_up` MODE Down - C `laminar/B738/push_button/mmr1_mode_dn` Digits - C `laminar/B738/push_button/mmr1_1` through `laminar/B738/push_button/mmr1_0` CLR - C `laminar/B738/push_button/mmr1_clr` # Display Mode: R `laminar/B738/mmr/cpt/stby_mode` (0=VOR, 1=ILS, 2=GLS) Value: R `laminar/B738/mmr/cpt/stby_value` Note: the value is an array that you need to read from right to left. So 114.45 is [5, 4, 4, 1, 1]. _ _ _ . _ _ is [0,0,0,0,1]. If the value of STBY is _ _ _ . _ _ and you want to switch that to active, you get ERR (R `laminar/B738/mmr/cpt/err` = 1). For active use R `laminar/B738/mmr/cpt/act_mode` and R `laminar/B738/mmr/cpt/act_value`.

Sander commented

2024-07-19 15:03:46 +00:00

Author

Owner

Copy link

Done

Sander closed this issue
