COM 2 #81

New issue
Closed
opened 2023-10-18 19:28:28 +00:00 by Sander · 4 comments
Sander commented 2023-10-18 19:28:28 +00:00
Owner
Copy link

Active display

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck

Standby display

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck

HF Sens knob

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

Frequency knob

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck

VHF 1

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck

VHF 2

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

VHF 3

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

Switch Standby/Active

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

Light

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

PNL Off

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

Enter frequency using X-KeyPad numbers

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

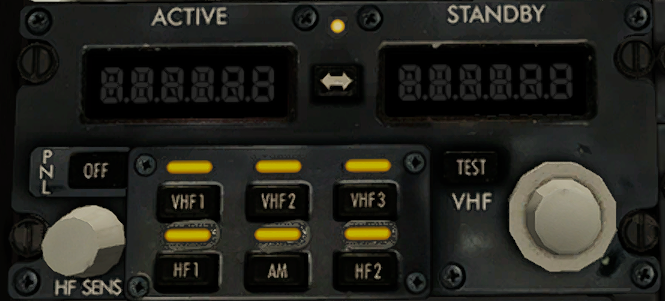

![](https://git.returntosander.net/attachments/6b05b3e7-7bb5-4aaa-99e6-00c7e94ccce0) # Active display - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck # Standby display - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck # HF Sens knob - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Frequency knob - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck # VHF 1 - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck # VHF 2 - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # VHF 3 - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Switch Standby/Active - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Light - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # PNL Off - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Enter frequency using X-KeyPad numbers - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout
308 KiB
Sander added this to the 0.0.1 milestone 2024-02-02 16:41:37 +00:00
Sander commented 2024-02-02 21:53:36 +00:00
Author
Owner
Copy link

Flip standby:

  • C laminar/B738/rtp_R/freq_txfr/sel_switch

HF SENS:

  • W laminar/B738/comm/rtp_R/hf_sens_ctrl/rheostat

Right knob:

  • C laminar/B738/rtp_R/freq_khz/sel_dial_dn
  • C laminar/B738/rtp_R/freq_khz/sel_dial_up
  • C laminar/B738/rtp_R/freq_MHz/sel_dial_dn
  • C laminar/B738/rtp_R/freq_MHz/sel_dial_up

VHF1

  • C laminar/B738/rtp_R/vhf_1/sel_switch
  • R laminar/B738/comm/rtp_R/vhf_1_status

VHF2

  • C laminar/B738/rtp_R/vhf_2/sel_switch
  • R laminar/B738/comm/rtp_R/vhf_2_status

VHF3

  • C laminar/B738/rtp_R/vhf_3/sel_switch
  • R laminar/B738/comm/rtp_R/vhf_3_status

ACTIVE

  • W sim/cockpit2/radios/actuators/com1_frequency_khz
  • W sim/cockpit2/radios/actuators/com1_frequency_Mhz

STANDBY

  • W sim/cockpit2/radios/actuators/com1_standby_frequency_khz
  • W sim/cockpit2/radios/actuators/com1_standby_frequency_Mhz
Flip standby: - C `laminar/B738/rtp_R/freq_txfr/sel_switch` HF SENS: - W `laminar/B738/comm/rtp_R/hf_sens_ctrl/rheostat` Right knob: - C `laminar/B738/rtp_R/freq_khz/sel_dial_dn` - C `laminar/B738/rtp_R/freq_khz/sel_dial_up` - C `laminar/B738/rtp_R/freq_MHz/sel_dial_dn` - C `laminar/B738/rtp_R/freq_MHz/sel_dial_up` VHF1 - C `laminar/B738/rtp_R/vhf_1/sel_switch` - R `laminar/B738/comm/rtp_R/vhf_1_status` VHF2 - C `laminar/B738/rtp_R/vhf_2/sel_switch` - R `laminar/B738/comm/rtp_R/vhf_2_status` VHF3 - C `laminar/B738/rtp_R/vhf_3/sel_switch` - R `laminar/B738/comm/rtp_R/vhf_3_status` ACTIVE - W `sim/cockpit2/radios/actuators/com1_frequency_khz` - W `sim/cockpit2/radios/actuators/com1_frequency_Mhz` STANDBY - W `sim/cockpit2/radios/actuators/com1_standby_frequency_khz` - W `sim/cockpit2/radios/actuators/com1_standby_frequency_Mhz`
Sander commented 2024-02-02 22:25:48 +00:00
Author
Owner
Copy link

This shows the setting for either 2 or 3 digits: W laminar/B738/effects/com_decimal

This shows the setting for either 2 or 3 digits: W `laminar/B738/effects/com_decimal`
Sander commented 2024-02-12 20:51:41 +00:00
Author
Owner
Copy link

The light is either R:laminar/B738/comm/rtp_R/offside_tuning_status or R:laminar/B738/comm/rtp_R/am_status

The light is either R:laminar/B738/comm/rtp_R/offside_tuning_status or R:laminar/B738/comm/rtp_R/am_status
Sander referenced this issue from a commit 2024-02-12 21:48:04 +00:00
🚧 Work in progress
Sander modified the milestone from 0.0.1 to 0.0.2 2024-07-22 07:48:08 +00:00
Sander commented 2024-07-23 14:45:27 +00:00
Author
Owner
Copy link

Done

Done
Sander modified the milestone from 0.0.2 to 0.0.1 2024-07-23 14:45:31 +00:00
Sander added this to the Alpha testing project 2024-09-11 10:29:11 +00:00
