Transponder #84

New issue
Closed
opened 2023-10-18 19:30:06 +00:00 by Sander · 5 comments
Sander commented 2023-10-18 19:30:06 +00:00
Owner
Copy link

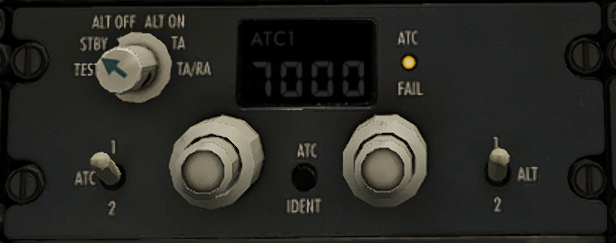

Upper left knob

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Support for TEST mode
  • Placed in Stream Deck profile layout

Left knob

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

Right knob

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

Left switch

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

Right switch

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

Display

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

ATC Ident

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck
  • Placed in Stream Deck profile layout

ATC Fail light

  • Find datarefs
  • Create graphics
  • Works in X-KeyPad
  • Works on Stream Deck

Direct entry

  • Enter transponder using number keys
![](https://git.returntosander.net/attachments/3e97d94b-ca48-4d6e-b349-19aca5bc64c3) # Upper left knob - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] [Support for TEST mode](https://git.passengerflying.com/Sander/xkeypad_streamdeck_zibo_b738/issues/84#issuecomment-498) - [x] Placed in Stream Deck profile layout # Left knob - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Right knob - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Left switch - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Right switch - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # Display - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # ATC Ident - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck - [x] Placed in Stream Deck profile layout # ATC Fail light - [x] Find datarefs - [x] Create graphics - [x] Works in X-KeyPad - [x] Works on Stream Deck # Direct entry - [ ] Enter transponder using number keys
230 KiB
Sander added this to the 0.0.1 milestone 2024-02-02 16:41:25 +00:00
Sander commented 2024-02-02 21:10:48 +00:00
Author
Owner
Copy link

Upper left knob:

  • C laminar/B738/knob/transponder_mode_dn
  • C laminar/B738/knob/transponder_mode_up
  • R laminar/B738/knob/transponder_pos

Left knob:

  • C sim/radios/transponder_1000_down
  • C sim/radios/transponder_1000_up
  • C sim/radios/transponder_100_down
  • C sim/radios/transponder_100_up

Right knob:

  • C sim/radios/transponder_10_down
  • C sim/radios/transponder_10_up
  • C sim/radios/transponder_1_down
  • C sim/radios/transponder_1_up

Left switch:

  • C laminar/B738/toggle_switch/xpndr_atc
  • R laminar/B738/switch/xpndr_atc_pos

Right switch:

  • C laminar/B738/toggle_switch/xpndr_alt
  • R laminar/B738/switch/xpndr_alt_pos
Upper left knob: - C `laminar/B738/knob/transponder_mode_dn` - C `laminar/B738/knob/transponder_mode_up` - R `laminar/B738/knob/transponder_pos` Left knob: - C `sim/radios/transponder_1000_down` - C `sim/radios/transponder_1000_up` - C `sim/radios/transponder_100_down` - C `sim/radios/transponder_100_up` Right knob: - C `sim/radios/transponder_10_down` - C `sim/radios/transponder_10_up` - C `sim/radios/transponder_1_down` - C `sim/radios/transponder_1_up` Left switch: - C `laminar/B738/toggle_switch/xpndr_atc` - R `laminar/B738/switch/xpndr_atc_pos` Right switch: - C `laminar/B738/toggle_switch/xpndr_alt` - R `laminar/B738/switch/xpndr_alt_pos`
Sander commented 2024-02-12 13:47:11 +00:00
Author
Owner
Copy link

The test mode of the upper left knob is only accessible with a long press when using the mouse. So we should replicate that. As soon as it is released, it should go back to the STBY position.

The `test` mode of the upper left knob is only accessible with a long press when using the mouse. So we should replicate that. As soon as it is released, it should go back to the `STBY` position.
Sander pinned this 2024-02-12 14:15:19 +00:00
Sander unpinned this 2024-02-12 14:15:31 +00:00
Sander commented 2024-02-12 19:59:48 +00:00
Author
Owner
Copy link

The R on the display has dref R:sim/cockpit/radios/transponder_light.

The `R` on the display has dref R:sim/cockpit/radios/transponder_light.
Sander referenced this issue from a commit 2024-02-12 21:48:04 +00:00
🚧 Work in progress
Sander commented 2024-07-19 15:04:30 +00:00
Author
Owner
Copy link

Done, except for entering with number keys.

Done, except for entering with number keys.
Sander commented 2024-07-20 08:43:18 +00:00
Author
Owner
Copy link

Done

Done
Sander added this to the Beta testing project 2024-09-11 10:29:07 +00:00
Sander modified the project from Beta testing to Alpha testing 2024-09-11 10:30:13 +00:00
